Temperature Controller

temperature Controller double dispaly

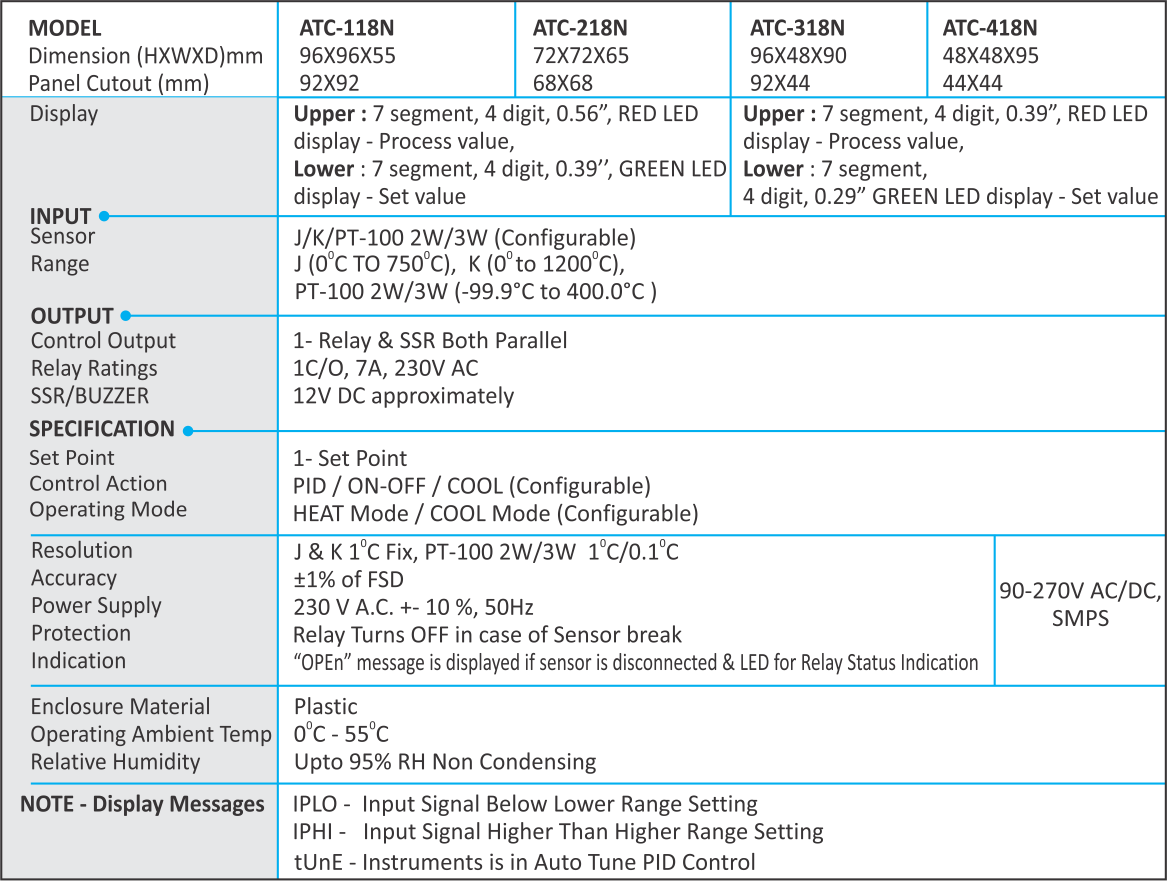

PROGRAMMABLE TEMPERATURE CONTROLLER

Double Dispaly, Auto Tune PID

Feature
Specifiaction

MODEL : ATC 118N , ATC 218N , ATC 318N , ATC 418
DISPLAY : 4 + 4 Digit,7 Segment LED Display
INPUT : J/K/PT-100 2W/3W (Configurable)
OUTPUT : 1 Relay & SSR Both Parallel

temperature Controller double dispaly

PROGRAMMABLE TEMPERATURE CONTROLLER

Double Dispaly,PID Controller , 3 Relay

Feature
Specifiaction

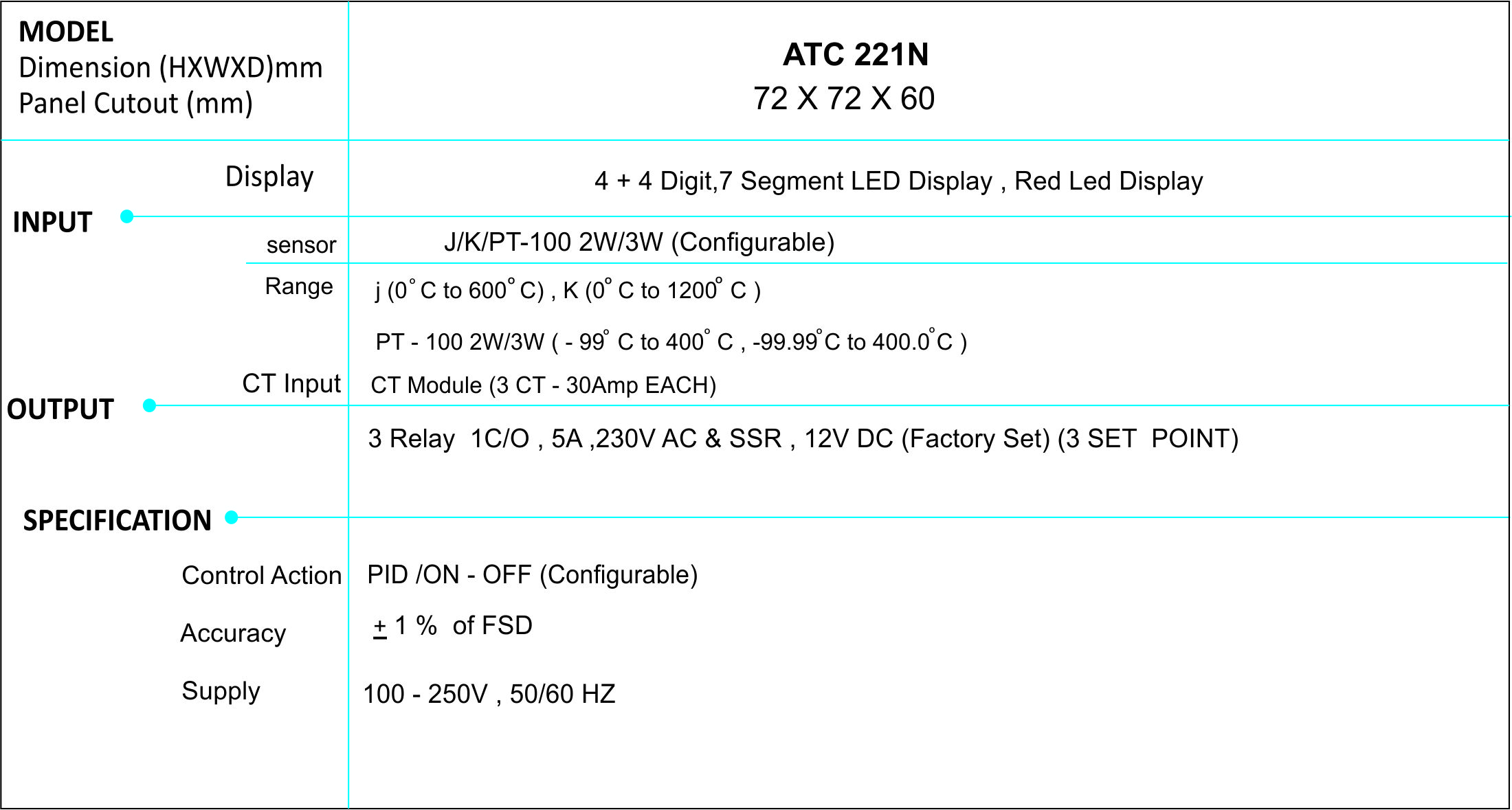

MODEL : ATC 221N
DISPLAY : 4 + 4 Digit,7 Segment LED Display
INPUT : J/K/PT-100 2W/3W (Configurable)
OUTPUT : 3 Relay 1C/O , 5A ,230V AC & SSR , 12V DC (Factory Set) (3 SET POINT)

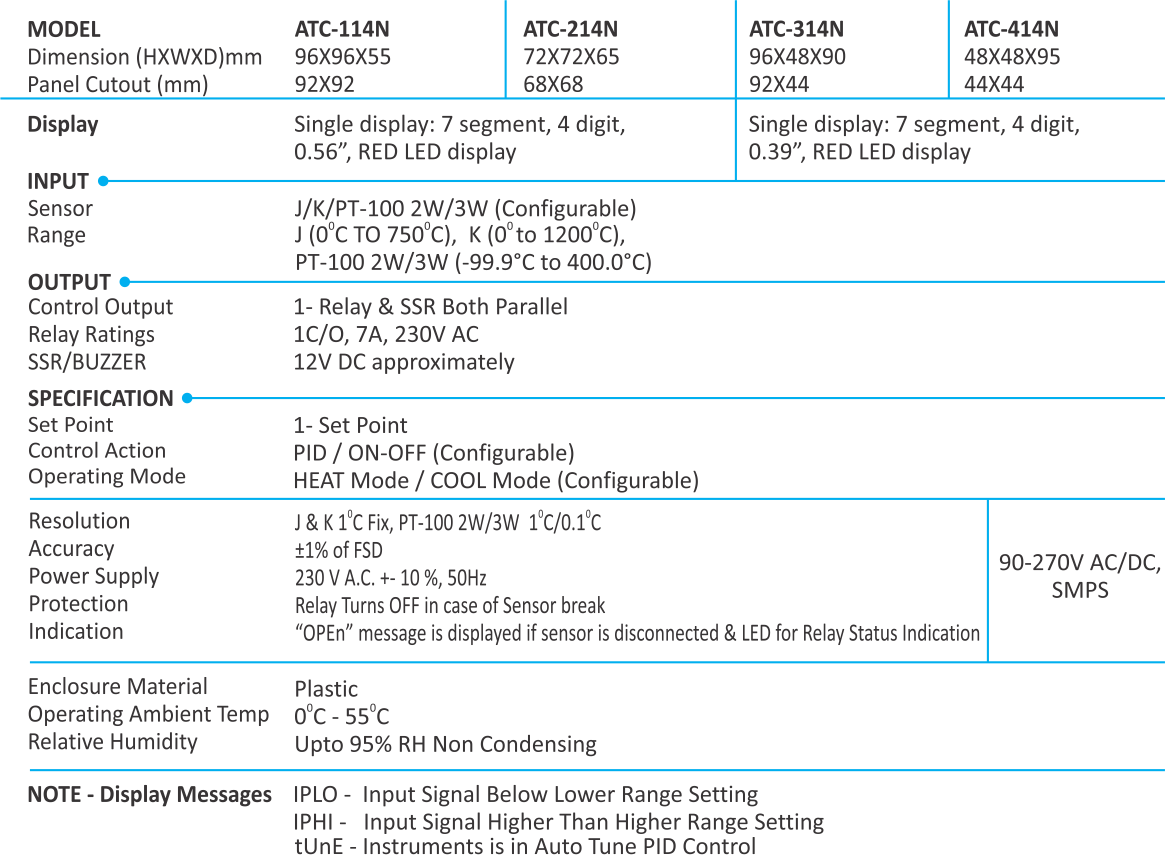

PROGRAMMABLE TEMPERATURE CONTROLLER

Single Dispaly, Auto Tune PID

Feature
Specifiaction

MODEL : ATC 114N , ATC 214N , ATC 314N , ATC 414
DISPLAY : Single Dispaly 4 Digit , 7 Segment LED Display
INPUT : J/K/PT-100 2W/3W (Configurable)
OUTPUT : 1 Relay & SSR Both Parallel

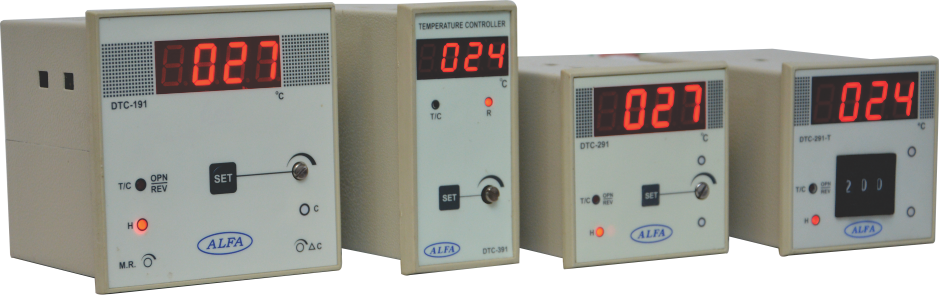

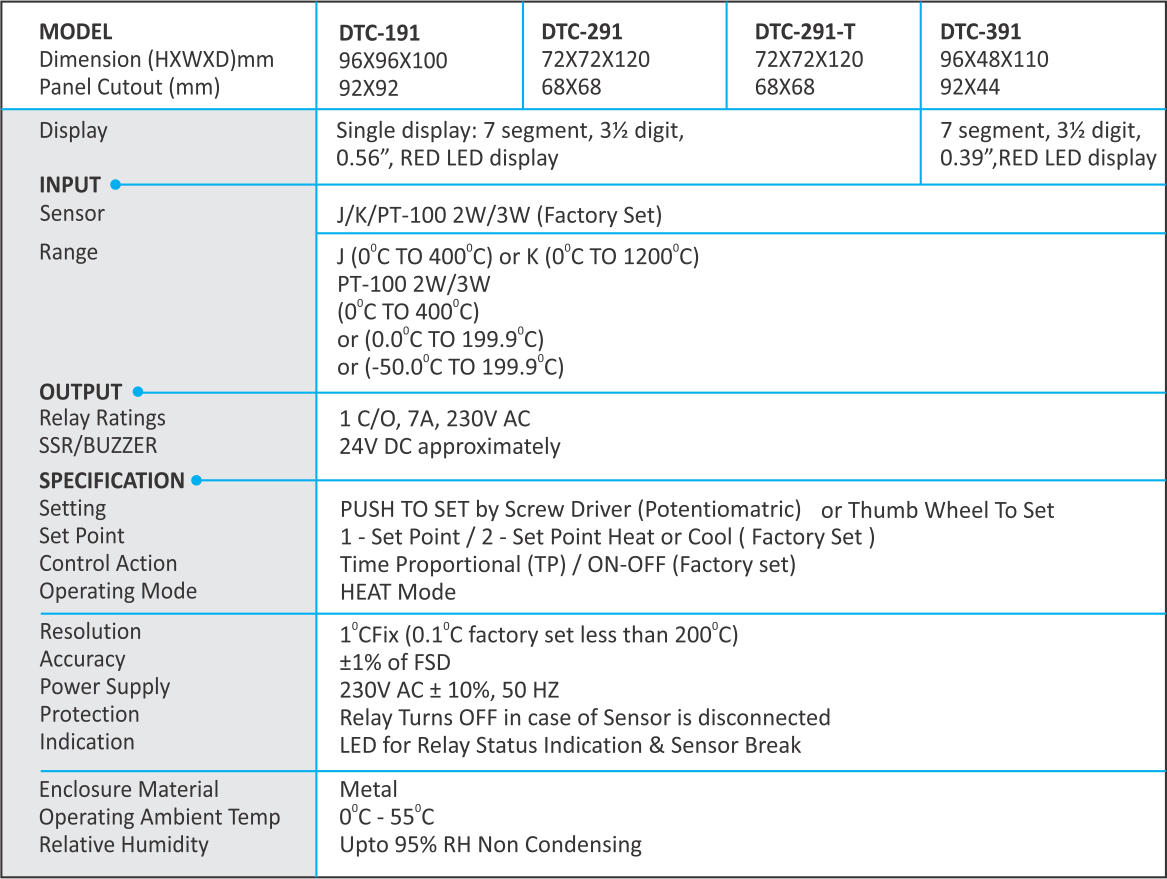

TEMPERATURE CONTROLLER

fixed input & fixed action, push to set & tumbwheel to set facility

Feature
Specifiaction

MODEL : DTC 191 , DTC 291 , DTC 291T , DTC 391
DISPLAY : Single display 3¹⁄₂ Digit , 7 Segment LED Display
INPUT : J/K/PT-100 2W/3W (Factory Set)
OUTPUT : 1 C/O 7A , 230V AC , 24V DC Appoximately

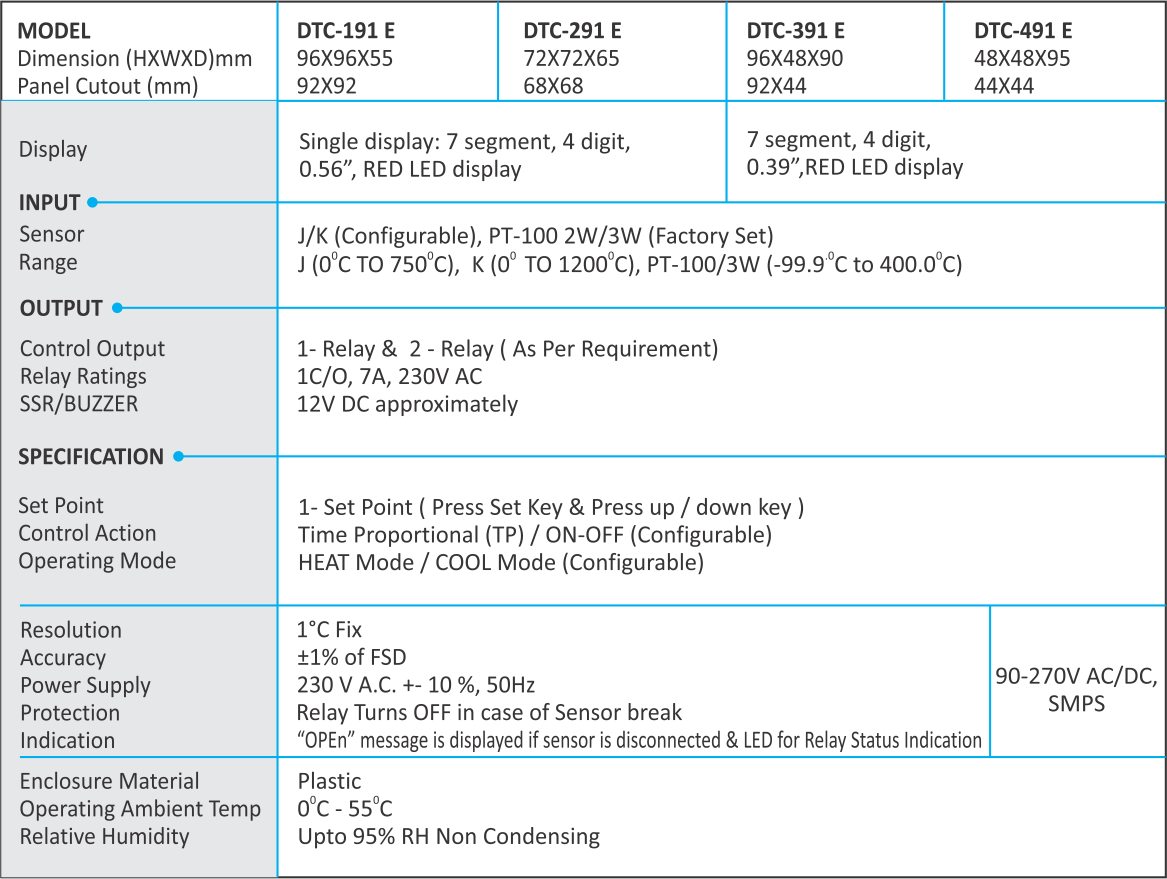

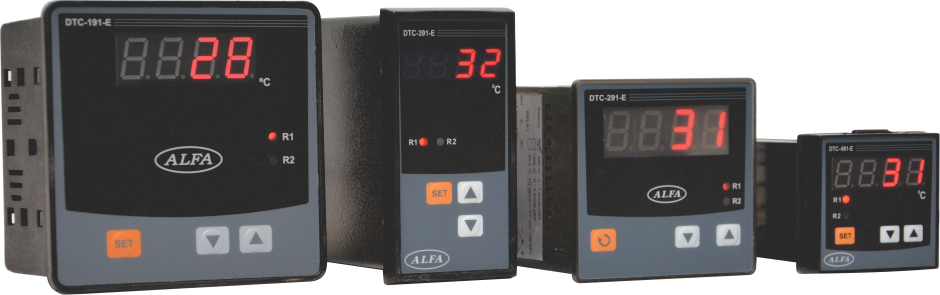

LOW COST TEMPERATURE CONTROLLER

Single Dispaly TP & on/Off Economy range

Feature
Specifiaction

MODEL : DTC 191 E , DTC 291 E , DTC 391 E , DTC 491 E
DISPLAY : Single display 4 Digit , 7 Segment LED Display
INPUT : J/K(Configurable) , PT-100 2W/3W (Factory Set)
OUTPUT : 1 Relay & 2 Relay (AS per Requirement) , 1 C/O 7A , 230V AC , 24V DC Appoximately

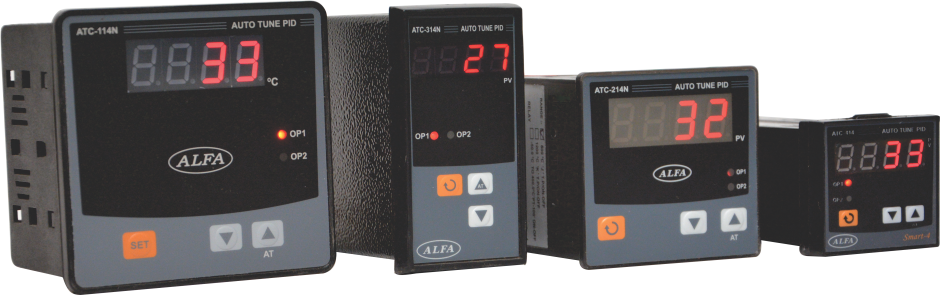

PROGRAMMABLE TEMPERATURE CONTROLLER

Single Dispaly dual output, PID Controller

Feature
Specifiaction

MODEL : ATC 114 N , ATC 214 N , ATC 314 N , ATC 414 N
DISPLAY : Single display 4 Digit , 7 Segment LED Display
INPUT : J/K/PT-100 2W/3W (Configurable)
OUTPUT : 1 Relay & SSR Both Parallel , 1 C/O 7A , 230V AC , 24V DC Appoximately

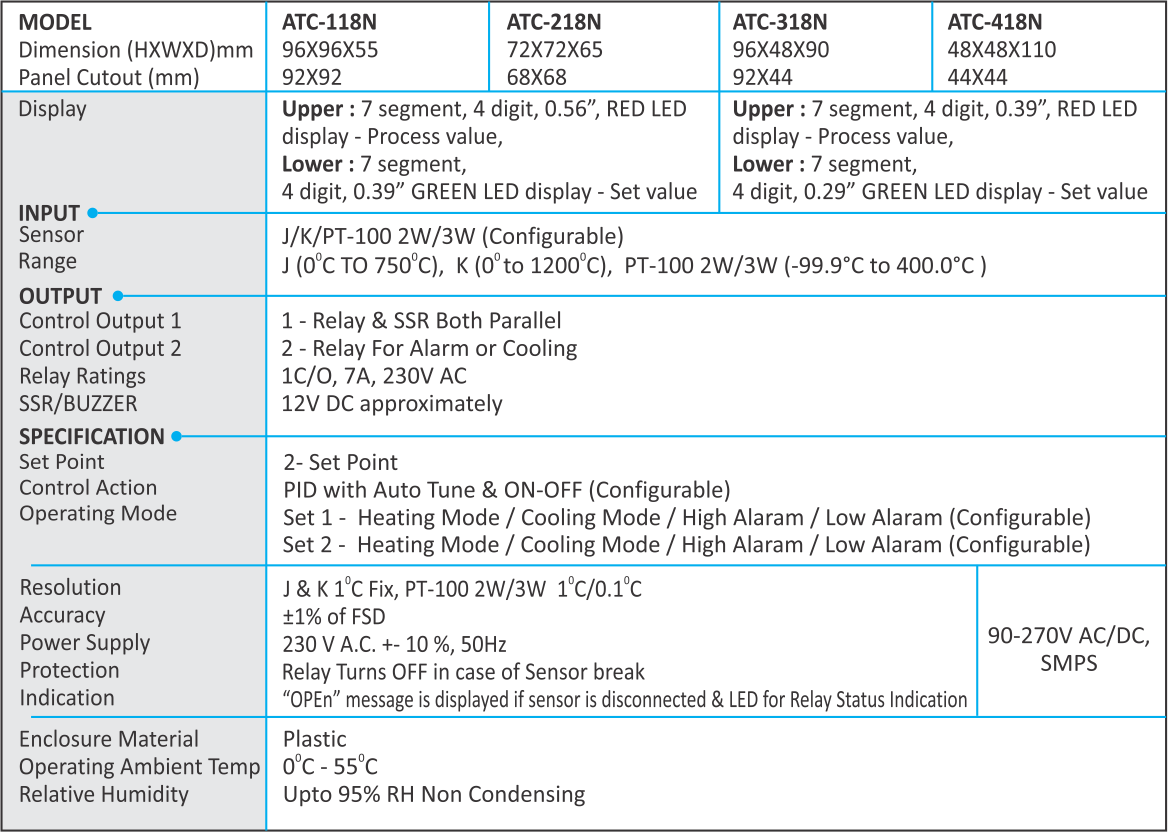

PROGRAMMABLE TEMPERATURE CONTROLLER

Double Dispaly dual output, PID Controller

Feature
Specifiaction

MODEL : ATC 118N , ATC 218N , ATC 318N , ATC 418N
DISPLAY : 4 + 4 Digit , 7 Segment LED Display
INPUT : J/K/PT-100 2W/3W (Configurable)
OUTPUT : 1 Relay & SSR Both Parallel, 2 Relay For Alaram OR Cooling , 1 C/O 7A , 230V AC , 24V DC Appoximately

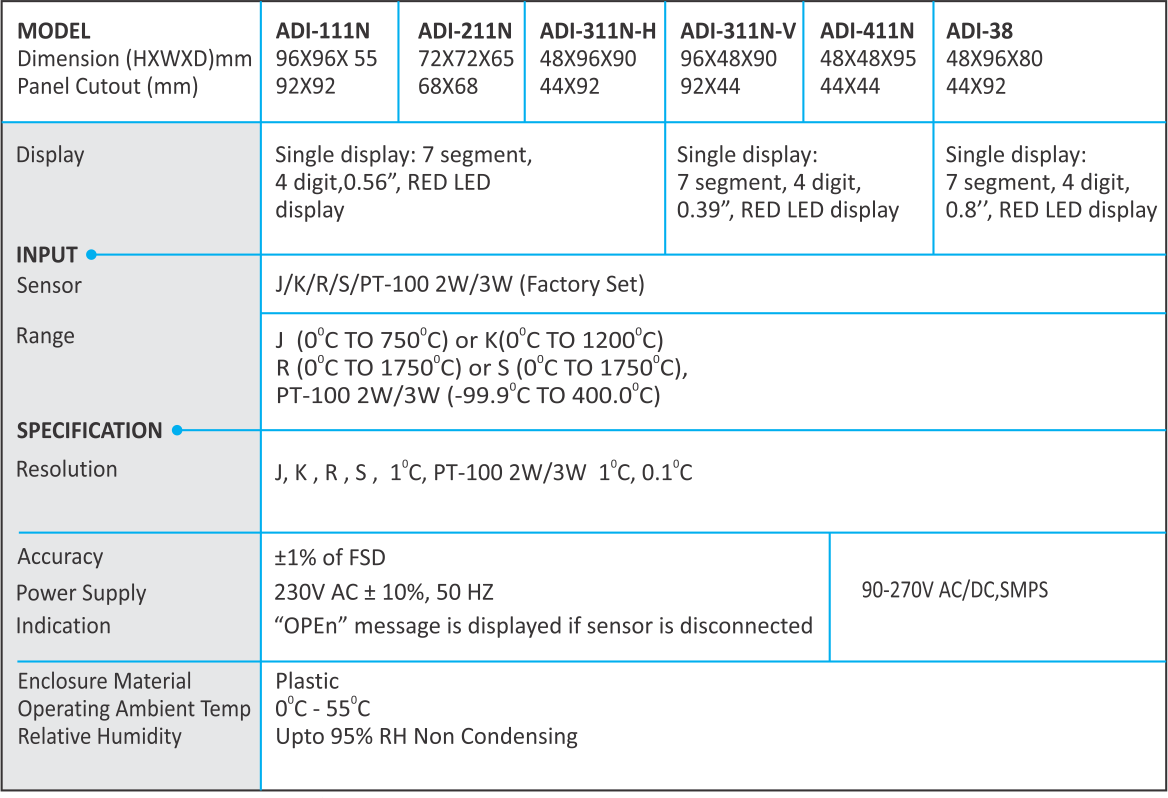

DIGITAL TEMPERATURE INDICATORS

fixed input

Feature
Specifiaction

MODEL : ADI 111N , ADI 211N , ADI 311N-H , ADI 311N-V, ADI 411N , ADI-38
DISPLAY : Single Dispaly 4 Digit , 7 Segment LED Display
INPUT : J/K/PT-100 2W/3W (Factory Set)

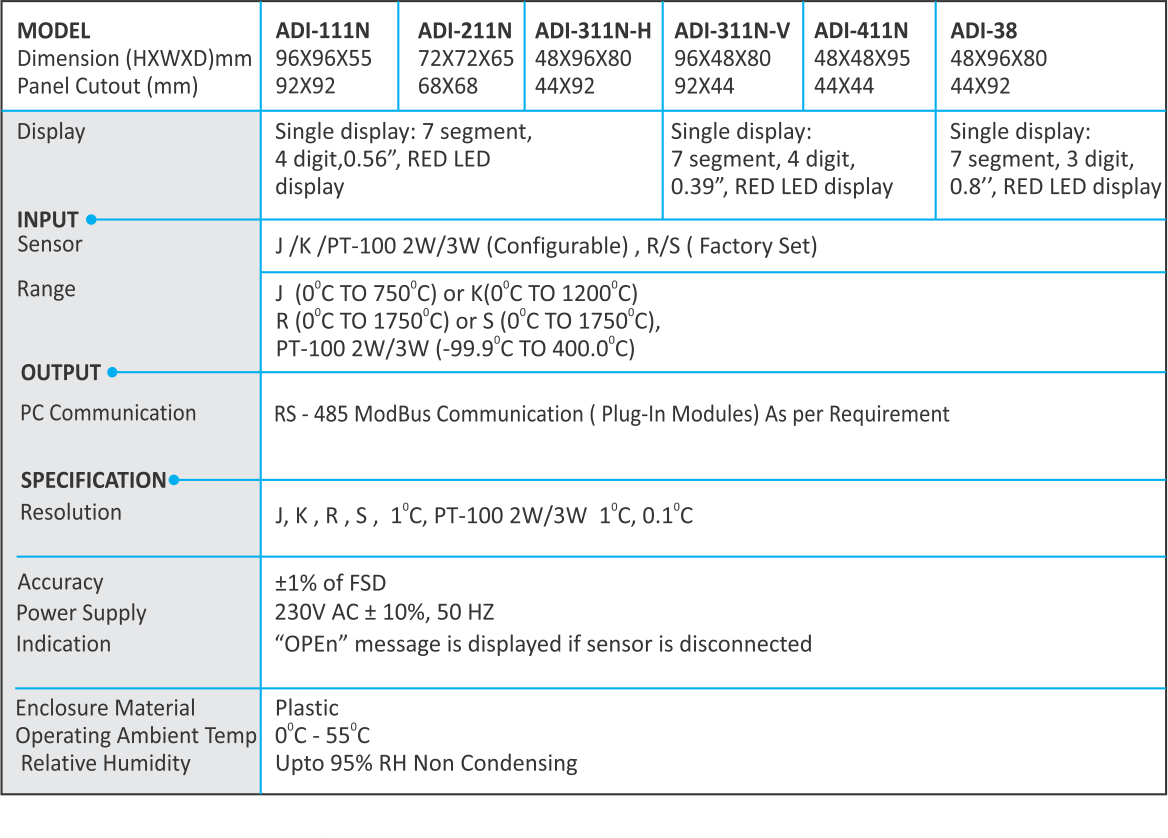

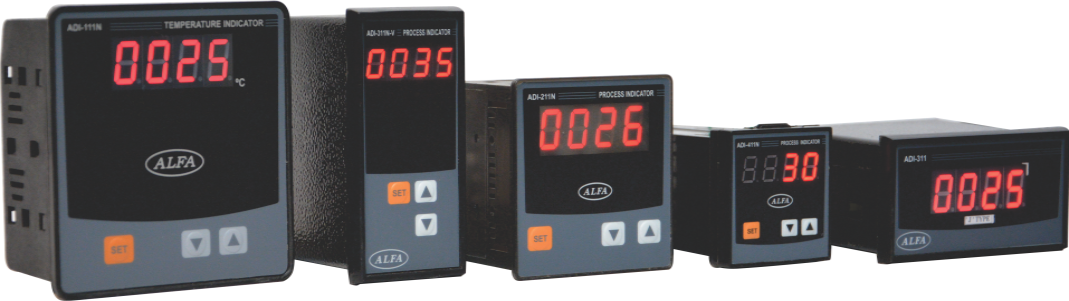

DIGITAL TEMPERATURE INDICATOR - UNIVERSAL

RS 485 MOD Bus Output

Feature
Specifiaction

MODEL : ADI 111N , ADI 211N , ADI 311N-H , ADI 311N-V, ADI 411N , ADI-38
DISPLAY : Single Dispaly 4 Digit , 7 Segment LED Display
INPUT : J/K/PT-100 2W/3W (Configurable) , R/S (Factory Set)
OUTPUT : RS - 485 ModBus Communication (Plug-in Modules) AS per Requirement

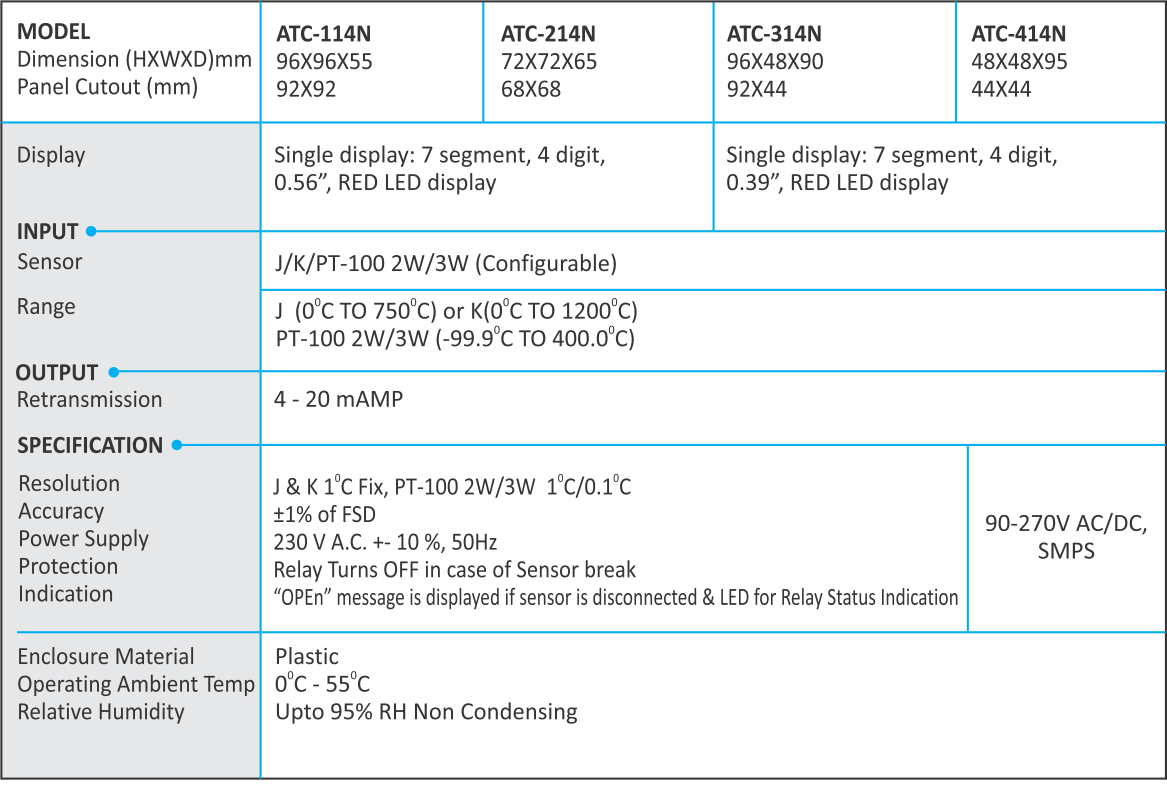

PROGRAMMABLE TEMPERATURE CONTROLLER

Single Dispaly, Auto Tune PID With Analog Output

Feature
Specifiaction

MODEL : ATC 114N , ATC 214N , ATC 314N , ATC 414N
DISPLAY : Single Dispaly 4 Digit , 7 Segment LED Display
INPUT : J/K/PT-100 2W/3W (Configurable)
OUTPUT : 4 - 20 mAMP

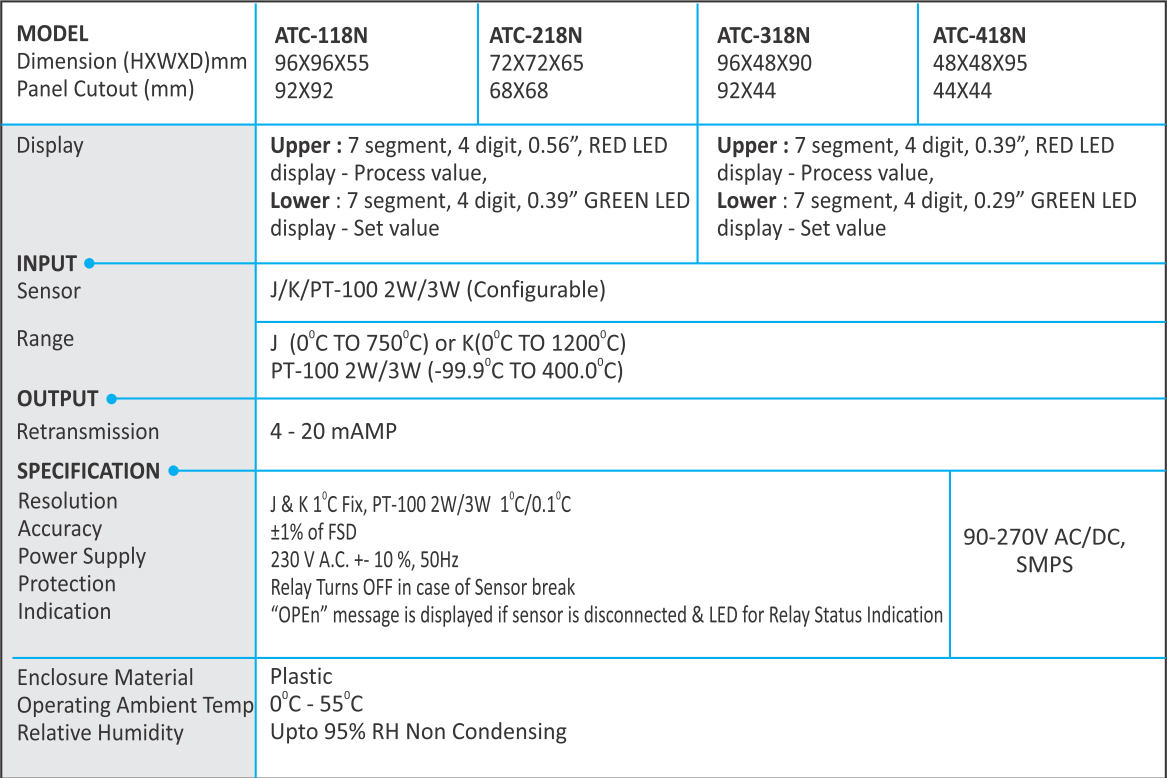

PROGRAMMABLE TEMPERATURE CONTROLLER

Double Dispaly, Auto Tune PID With Analog Output

Feature
Specifiaction

MODEL : ATC 118N , ATC 218N , ATC 318N , ATC 418N
DISPLAY : 4 + 4 Digit , 7 Segment LED Display
INPUT : J/K/PT-100 2W/3W (Configurable)
OUTPUT : 4 - 20 mAMP

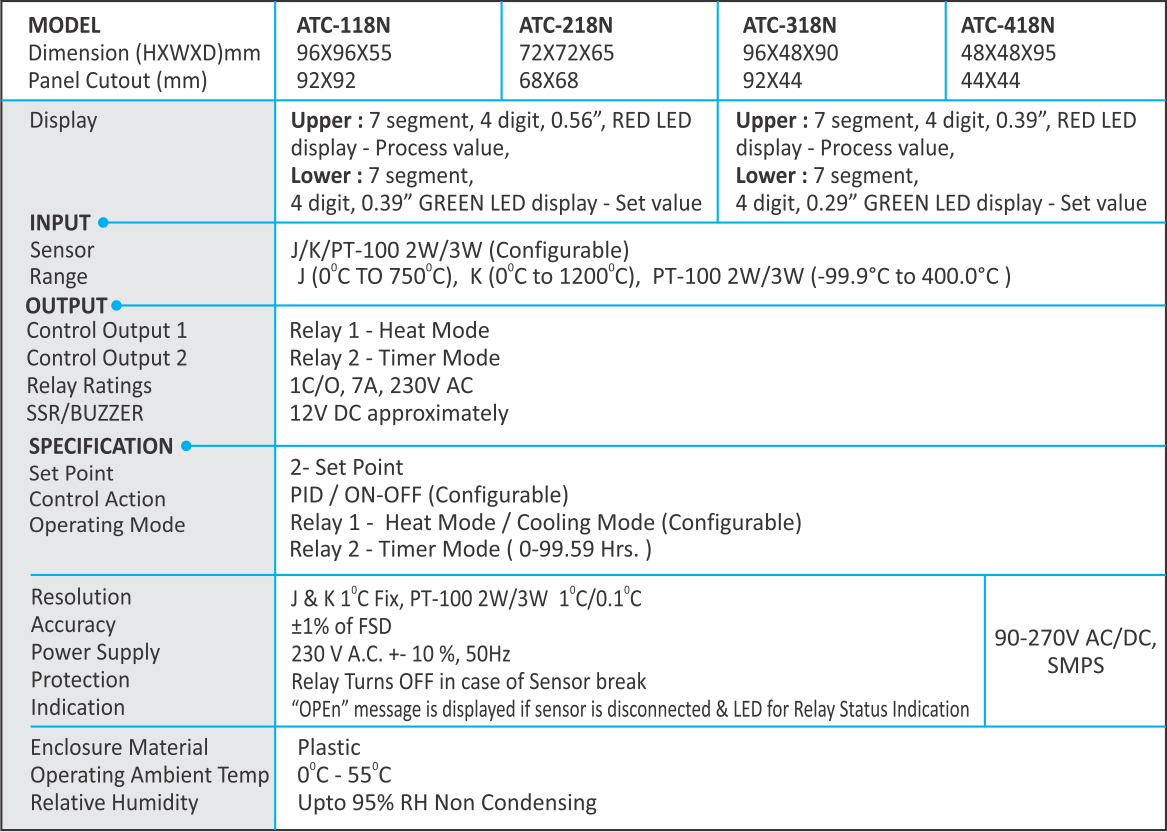

TEMPERATURE CONTROLLER With Soak Timer

Double Dispaly

Feature
Specifiaction

MODEL : ATC 118N , ATC 218N , ATC 318N , ATC 418N
DISPLAY : 4 + 4 Digit , 7 Segment LED Display
INPUT : J/K/PT-100 2W/3W (Configurable)
OUTPUT : Relay 1 - Heat Mode , Relay 2 - Timer Mode , 1 C/O, 7A , 230V AC , 12V DC Appoximately

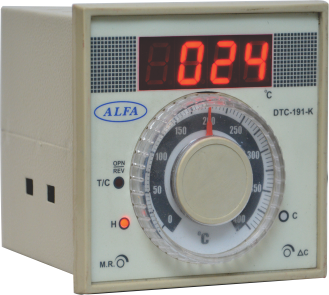

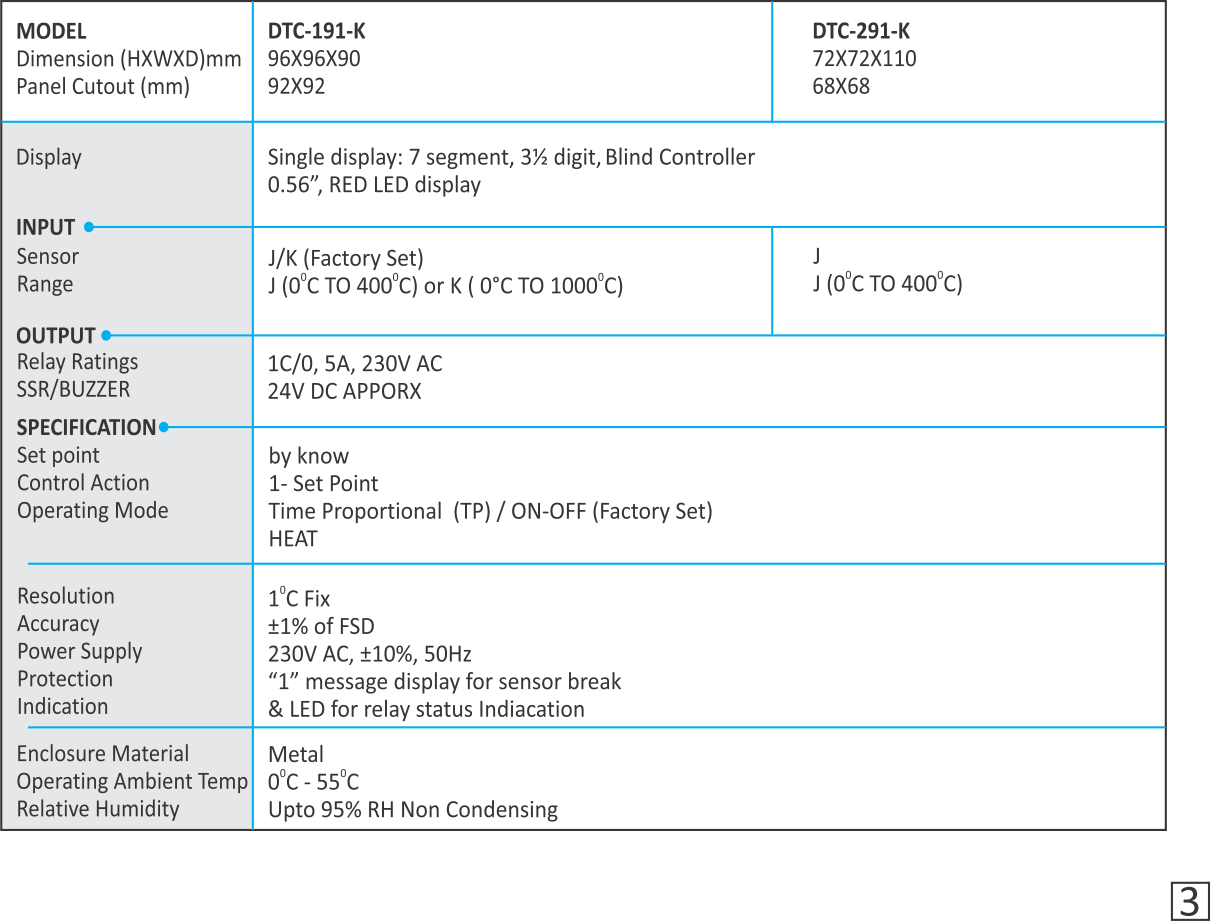

TEMPERATURE CONTROLLER By Know

fixed input & Action, With Know Setting

Feature
Specifiaction

MODEL : DTC 191-K , DTC 291-K
DISPLAY : Single display 3¹⁄₂ Digit , 7 Segment LED Display
INPUT : J/K (Factory Set)
OUTPUT : 1 C/O, 5A , 230V AC , 24V DC Appoximately
